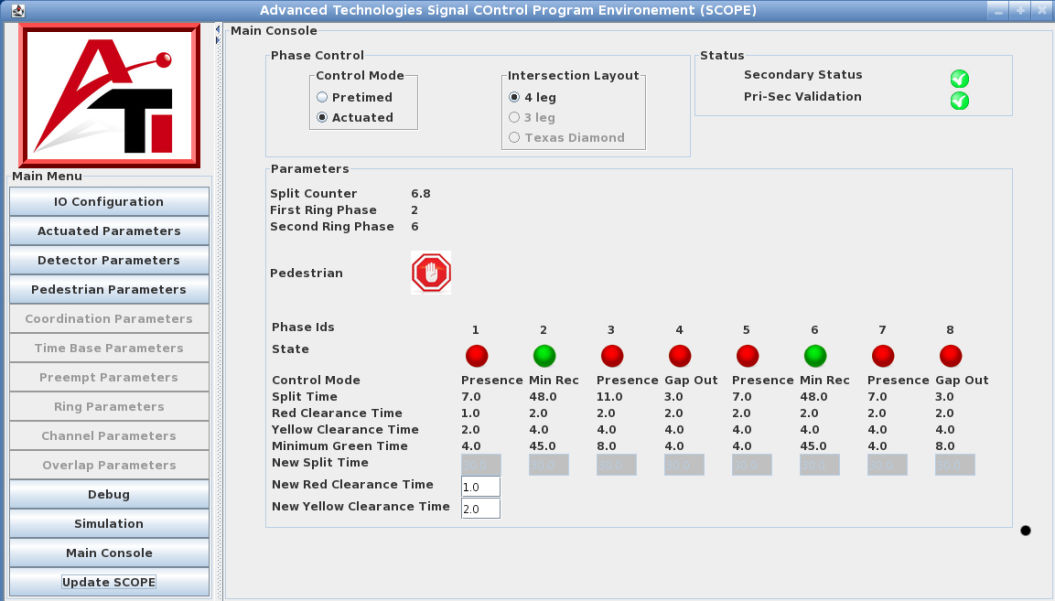

SCOPE GUI for Workstations

The workstation GUI allows us to control SCOPE when running on a workstation, PowerPC prototype board, or Advanced Traffic Controller.. It allows the changing of control modes, splits, and other values "on the fly". It also allows simulation of 64 traffic detectors and 8 pedestrian detectors.

Mobirise

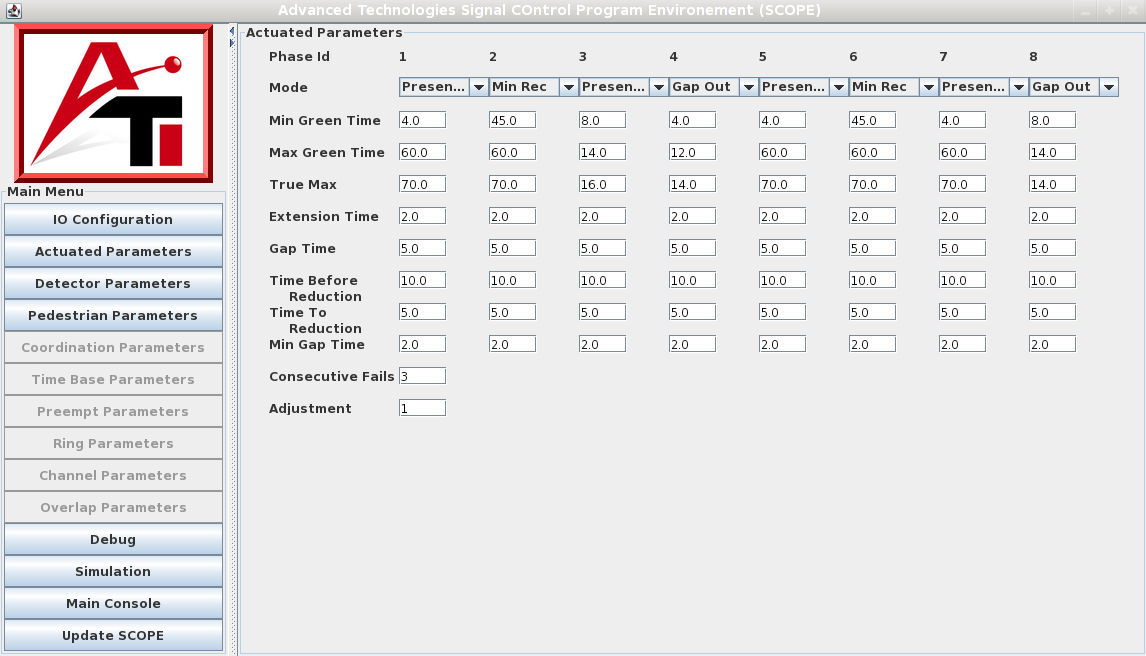

The Actuated Parameters control screen of the SCOPE Java interface.

Mobirise

Debug Logging Feature

Here is a snippet of the primary's debug log with the logging level set to medium. The log shows mis-compares between the primary result and the secondary result. An earlier entry in the log displayed the fields that mis-compared. They are not displayed over and over for brevities sake.

These are configuration files for the ATC Control GUI of SCOPE that runs on a Linux PC or Workstation. To run a test, copy the file to "previousSettings.Properties". In the future, SCOPE's GUI will contain a selection box to choose a pre-defined test. However, the GUI is currently only used to run Integration Testing.

  1. Gap Out 1 Phase
  2. Max Out Parameters
